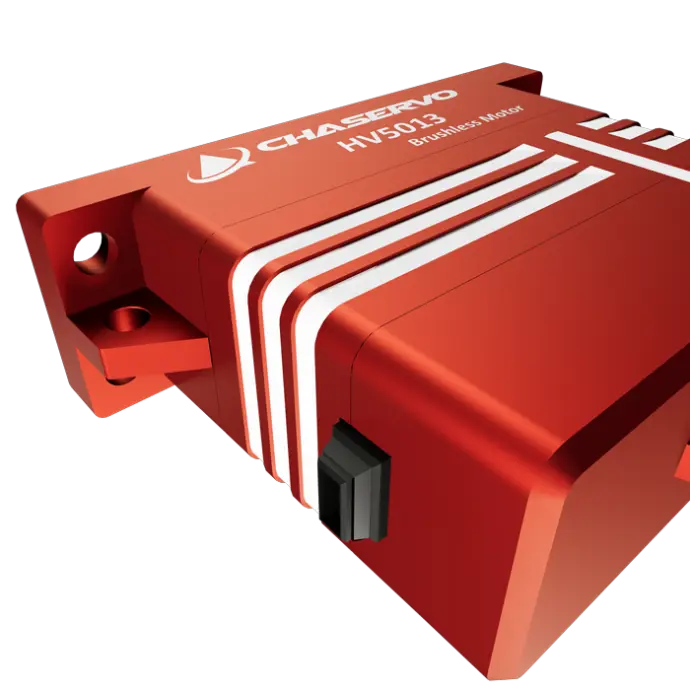

Chaservo High-Torque Brushless Datasheet

4-Pole Brushless | 60kg-cm Extreme Torque | Competition Series

1. Physical Specifications

Feature	Details (Metric First)
Dimensions	40.5 x 17 x 40 mm (1.59 x 0.67 x 1.57 in)
Weight	68 g (2.40 oz*)
Case Material	Full Aluminum
Gear Set Material	Metal Gears
Output Shaft Spline	25T

2. Electrical & Control Logic

Parameter	Specification
Motor Type	4-Pole Brushless
Position Sensor	Potentiometer
Voltage Range	DC 6.0V – 8.4V
Working Frequency	1520µs / 333Hz
Pulse Range	900µs – 2100µs
Programmable	Yes

3. Dynamic Performance Matrix

Voltage	Holding Torque	Output Torque	Speed (60°)	Max Current
6.0V	40.0 kg-cm (555.49 oz·in)	34.0 kg-cm (472.17 oz·in)	0.16 sec	8.5 A
7.4V (Rated)	50.0 kg-cm (694.36 oz·in)	42.5 kg-cm (590.21 oz·in*)	0.13 sec	10.3 A
8.4V	60.0 kg-cm (833.24 oz·in)	51.0 kg-cm (708.26 oz·in)	0.11 sec	11.8 A

High-Torque Class | Brushless Powerhouse | Professional Grade
